?YC-767H屬于標準機型YC-767的非標訂制型號，加高加度，雙色絲印，適應客戶生產線特殊需求， ?適用于圓形，橢圓形，方形等多種承印物：整機結構合理、調試便捷、運行穩定。 ?集成同步自動上料、自動升降印刷、汞燈/高強度LED/紫外線固化等多種功能，實現高效率印刷工作。 ?全機電子元件及控制系統均進口自德國和日本知名品牌，確保產品高質高量。 ?通過國際名牌觸摸顯示屏PLC輕松實現人機對話.操作更為得心成手。 ?具備瓶子預先對位功能，印刷過程更加高效精準。 ?通過電子傳感器實現“無件不印刷”，氣壓過低報警等自動監測功能& ?整機原理為機械同步，輕松實現全自動化一條龍生產線，自由蛆合單色，雙色甚至務色印刷。 ?可訂制全自動組合生產線：CCD視覺檢測，全自動貼標，全自動燙金等，滿足各神印刷包裝工藝高標準要求
| 技術參數(Specifications) | 圓形容器(Cylindrical) | 扁形容器(Elliptical) | ||||||||||||
| 最大印刷長度(Max Printing Length) | 300mm | 120mm | ||||||||||||
| 最大印刷寬度(Max Printlng Width) | 250mm | 40mm-120mm | ||||||||||||
| 印刷產品尺寸(Printed Objec Dimension) | Φ;25mm-140mm L:60mm-300mm | R:25mm-250mm L:60mm-300mm | ||||||||||||
| 最快速度(Max speed) | 4000Pcs/hr | 5000Pcs/hr | ||||||||||||
| 供氣壓力(Air pressure) | 5-7kg/cm | |||||||||||||
| UV燈功率(UV Lamp Power) | 5kw | |||||||||||||
| 電源(Power Supply) | AC 380V 3Phase 50/60Hz 9kw | |||||||||||||
| 外形尺寸(Dimension) | 5000(L)x2500(W)x2100(H)mm | |||||||||||||
| 重量(Veight) | 3000kg | |||||||||||||
產品簡介
?YC-767H屬于標準機型YC-767的非標訂制型號，加高加度，雙色絲印，適應客戶生產線特殊需求，
?適用于圓形，橢圓形，方形等多種承印物：整機結構合理、調試便捷、運行穩定。
?集成同步自動上料、自動升降印刷、汞燈/高強度LED/紫外線固化等多種功能，實現高效率印刷工作。
?全機電子元件及控制系統均進口自德國和日本知名品牌，確保產品高質高量。
?通過國際名牌觸摸顯示屏PLC輕松實現人機對話.操作更為得心成手。
?具備瓶子預先對位功能，印刷過程更加高效精準。
?通過電子傳感器實現“無件不印刷”，氣壓過低報警等自動監測功能&
?整機原理為機械同步，輕松實現全自動化一條龍生產線，自由蛆合單色，雙色甚至務色印刷。
?可訂制全自動組合生產線：CCD視覺檢測，全自動貼標，全自動燙金等，滿足各神印刷包裝工藝高標準要求
Introduction

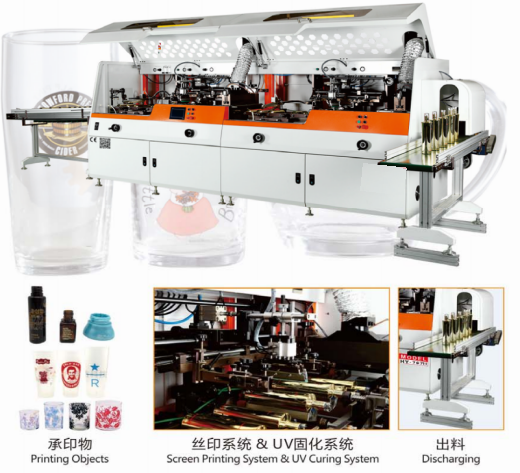

?YC-767H is a non-standard customized model of standard model YC-767, heightened and widened, 2 colors silk screen, to meet the special needs of customers' production lines.
?Suitable for round, oval, square and other objects; entire machine with reasonable structure, convenient debugging and stable operation.
?Integrate multiple functions such as synchronous automatic feeding, automatic lifting priming, mercury lamp/high-intensity LED/ultraviolet curing, etc., to achieve high-efficiency printing work.
?The electronic components and control system of the printer are imported from well-known German and Japanese brands to ensure higher quality and huger quantity of products,
?Through the intemational famous brand touch screen PLC, It Is easy to realize the man-machine dialogue, and the operation is more convenient.
?With the function of per-alignment of bottles, the priming process is more efficient and accurate.
?Realize automatic monitoring functions such as "no object no printing and low air pressure alarm through electronic sensors.
?The principle of the whole machine is mechanical synchronization which can easily realize a fully automated one-stop production line, freely combine single-color, double-color or even multi-color printing.
?customizable automatic combined production line: CCD vision inspection, automatic labeling, automatic hot stamping, etc., to meet the high standards of various printing and packaging processes.
