| 技術參數(Specifications) | ||||||||||||||||||||||||
| 應用產品形狀(Shape of Application Object) | 圓形 Cylindrical,橢圓Elliptical方形 Square,平面 Flat 等 etc. | |||||||||||||||||||||||
| 應用產品尺寸(Size of Application Object) | 直徑D25-60mm 長度L6O-28Omm | |||||||||||||||||||||||
| 應用產品類型(Type o( Application Object) | 膏霜罐、筆桿，乳液瓶.瓶蓋、硬塑料瓶、玻璃瓶、金屬瓶、軟管.軟塑料瓶等 cream jars, Penholders, lotion bottles, bottle caps, hard plastic bottles, Glass bottles ,metal bottles,hoses,soft plastic bottles, etc. | |||||||||||||||||||||||
| 產品質量監測及精度(Object Quality inspection and Accuracy | 多印（面積）≥0.1mm2、少印（面積）≥0.1mm2、污點（面積）≥0.5mm2、刮痕（面積）≥0.1mm2、套色不準（尺寸）≥0.2mm、 產品質量監測及精度 燙金偏差（尺寸）0.2mm-2.5mm、色差≥△E4別除；以上檢測精度可自由調節more printing（area）≥0.1mm3，less printing（area）≥0.1mm3，stains（area）≥0.5mm scratches（area）≠0.1mm2，inaccurate color registration（size）≠0.2mm，hot stamping deviation(size)0.2mm-2.5mm.color difference ≥E4elmination:the above detaction aoburacy can be adjusted freely | |||||||||||||||||||||||
| 產品誤檢率(Object False Detection Rate) | ≤0.3%（只會誤檢成不合格品，通過檢測的產品絕對100%合格品）only falsely detected as unqualfiedproducts,productsthatpassthetest areabsolutely100%qualifiedproducts | |||||||||||||||||||||||
| 電源(Power Supply ) | 絲印機 Printer AC380V 50HZ 9KW 3Phase 視覺檢測CCD AC220V 50HZ 2.5KW | |||||||||||||||||||||||
| 供氣壓力(Air pressure) | 5-7kg/cm | |||||||||||||||||||||||
| 外形尺寸(Dimension) | 絲印機Printer2800(L)×2500(W)×2100(H)mm 視覺檢測CCD 2300(L)X1500(W)X2200(H)mm | |||||||||||||||||||||||
產品簡介
●訂制組合絲印及檢測全自動生產線，滿足各種印刷包裝工藝高標準要求。
●適用于圓形，橢圓形，方形等產品；全線結構合理、調試便捷、運行穩定。
●全線電子元件及控制系統均為國際知名品牌.確保產品高質高量。
●可訂制加裝全自動貼標，燙金等功能，靈活組合全自動化一條龍產線。
●同一機臺同一電腦可實現同時運行缺陷檢測和印刷定位雙系統。
Introduction

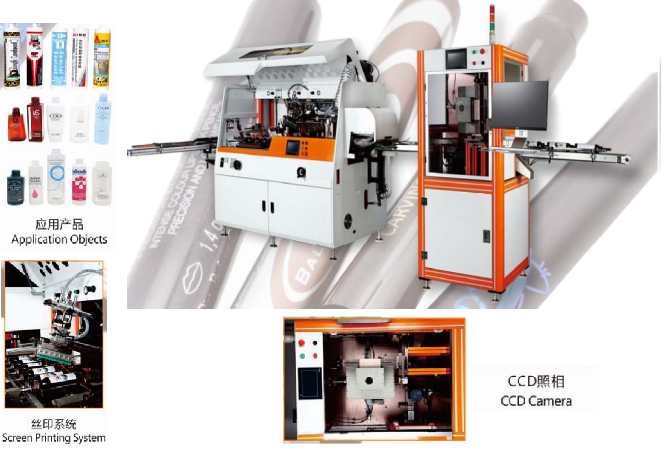

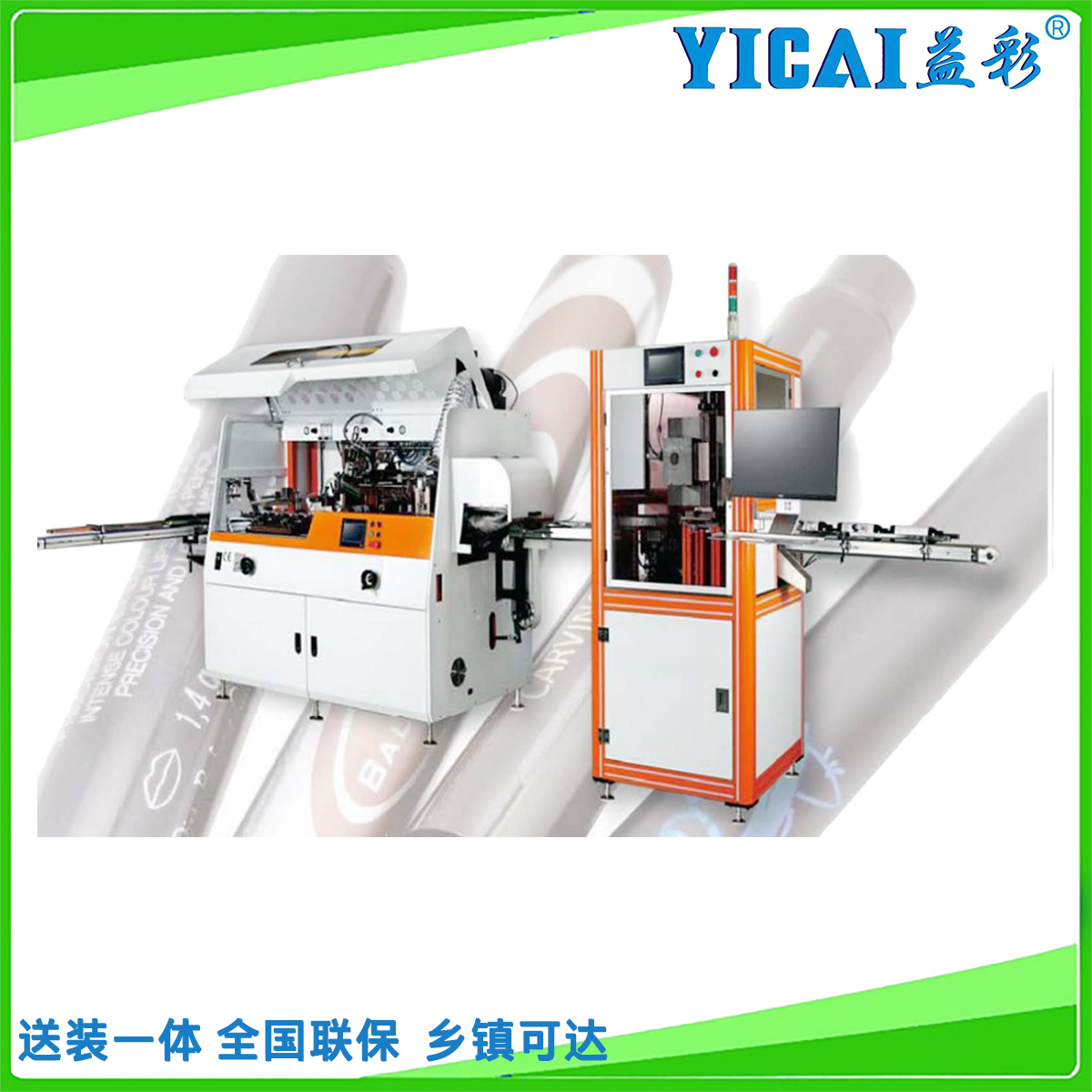

?Customized combined silk screen printing and vision inspection automatic production line, to meet the higher standard requirements of various printing and packaging processes.
?Suitable for round, oval, square and other products; entire line is with reasonable structure, convenient debugging and stable operation.
?Electronic components and control systems used on the entire line are internationally famous brands, to ensure higher quality and huger quantity of products.
?It can be customized and installed with automatic labeling, hot stamping and other functions, and flexibly combine fully automated one-stop production lines.
?The same machine and the same computer can realize the simultaneous operation of defect detection and printing positioning dual systems
